CERAMICS FOR REFRACTORY AND THERMAL INSULATION
High performance and low thermal conductivity
High performance, low thermal conductivity, engineering ceramics as used as refractory thermal insulation materials for all hot processes. A range of refractory 3-dimensional products based upon inorganic minerals and fibres bonded with colloidal silica produced by a vacuum-forming process and papers produced by a water-based paper process. This unique material enables Tenmat to form complex 3D shapes, as well as hot gas filter candles, tap-out cones, pouring nozzles, spouts, and flow control tubes.
CERAMICS FOR REFRACTORY AND THERMAL INSULATION
Efficient heat control with Tenmat's insulation materials
Tenmat engineering ceramics as used as refractory thermal insulation materials are available in board, shape and paper formats with low thermal conductivity (K value), less than 0.05 W/mK, and resistance to thermal shock. Application temperatures up to 1250°C depending upon the grade chosen. At densities as low as 200 kg/m3 products are available in rigid and flexible forms. All exonerated refractory products and materials are in accordance with the European Directive 97/69EC on Classification, Packaging, and Labelling of Dangerous Substances.
Our ceramics at a glance
- Low thermal conductivity
- Thermal shock resistance
- Free of harmful fibres
- High-temperature resistance
- Available in 3D shapes
- Chemical resistance
Availability
Product applications
Application | Material |

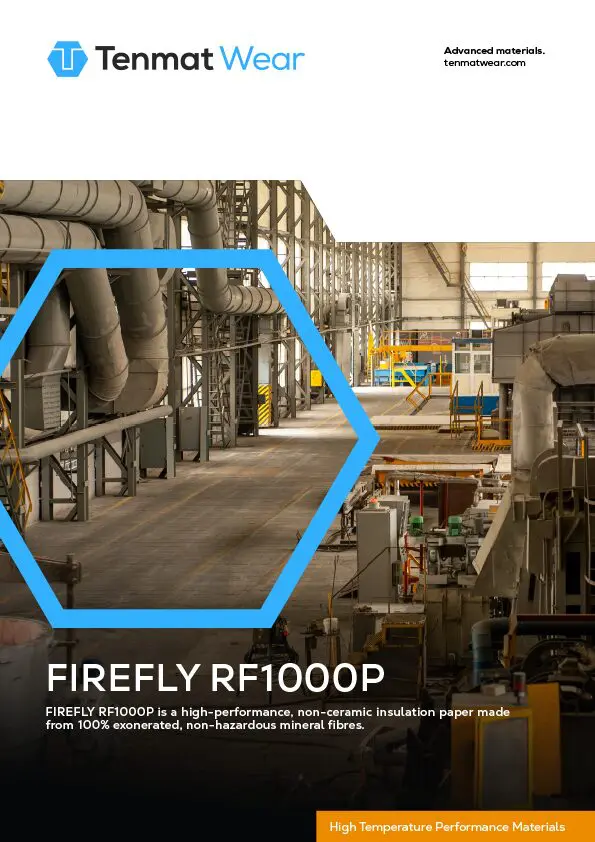

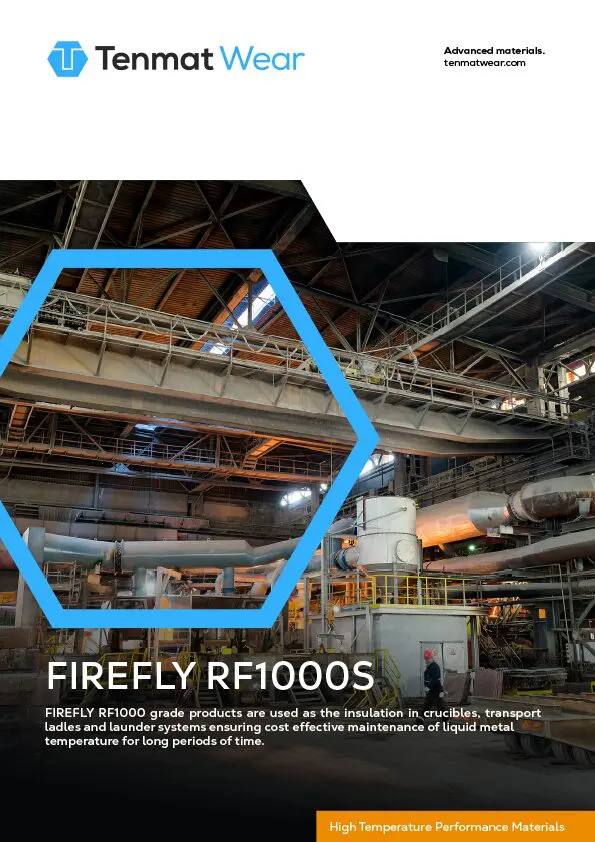

Oven and Furnace Insulation seals and gaskets | RF1000 |
Candle and Big Tube Filters for Hot Gas Filtration | CS1150F / CS1255F |
Seal for pressurized gas filtration | RF1000L / RF1200 |
Machined components for scientific and laboratory equipment | CS1150 |
Aluminium processing pouring nozzles | CS1150 |
Tap out cones | CS1150 |
