CS1255F Hot Gas Big Tube Filters
CS1255F Hot Gas BIG TUBE FILTERS
High-performance composite technology
Completing our existing range of 1.8m, 2.4m and 3.0m long CS1255F Hot Gas Big Tube Filters, this new 5.6m long variant is based on the same high-performance composite technology which ensures both filtration efficiency above 99.99% and the safety inherent to a non-ceramic mineral composite material.
CS1255F Hot Gas BIG TUBE FILTERS
Hot gas filtration
CS1255F is manufactured from 100% exonerated Alkaline Earth Silicates (AES) fibres, with proprietary high-temperature bonding agents and is able to resist temperatures up to 1000 C, which removes the need to cool down the gases before they reach the filter elements. Being a spark-proof mineral composite material, CS1255F also removes the need for costly anti-spark arresters.
The main features of our hot gas big tube filters are:
- Free of refractory ceramic fibres: non-hazardous
- High filtration efficiency: >99.99%. Much more efficient than electrostatic precipitators or wet scrubbers
- Able to filter sub-micron particle size
- High-temperature material: operates up to 1,000°C, without gases cooling
- Spark-proof and non-combustible
- Regenerated by a counter-current pulse of cleaning gas. Mechanically strong material, also able to withstand thermal shocks
- Easy to install
- 5.6m version: easy assembly of 2 filter halves via adhesive and dowels
- Lower capital cost than electrostatic precipitators
- Inert to most acid and alkali gases
Resources

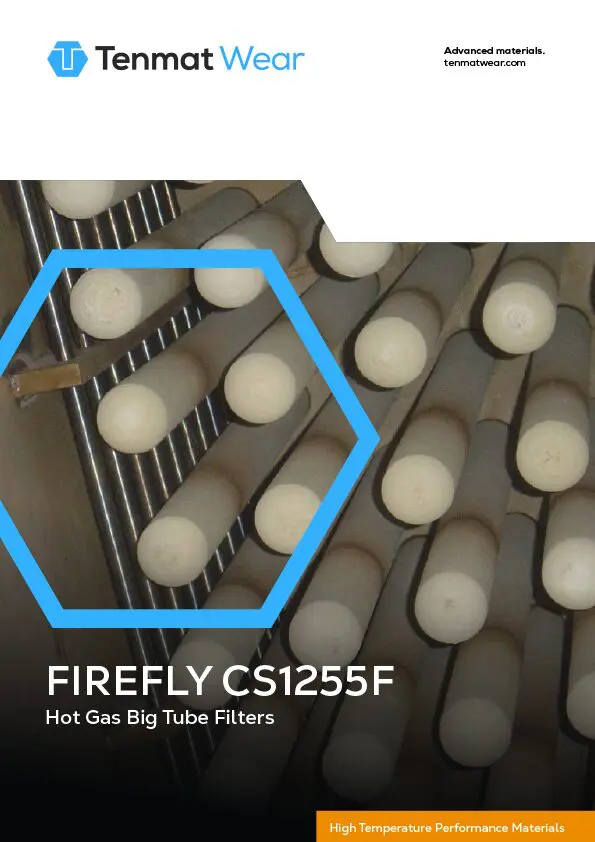

![Hot gas big tube filters](https://tenmatwear.com/wp-content/uploads/2023/12/Screenshot-2023-12-06-at-15.25.37.png)
Contents
Low Thermal Conductivity
Thermal Shock Resistance
Free of harmful fibres
High Temperature Resistance
Elements do not Tear
